High-Efficiency Exhaust Gas Heat Recovery
Our exhaust gas heat exchangers are engineered to recover waste heat from industrial exhaust streams, converting it into usable energy. This advanced heat recovery solution significantly reduces fuel consumption and operating costs while minimizing environmental impact.
Designed for demanding industrial applications, these units feature robust construction and optimized heat transfer surfaces to maximize thermal efficiency even in the harshest conditions.

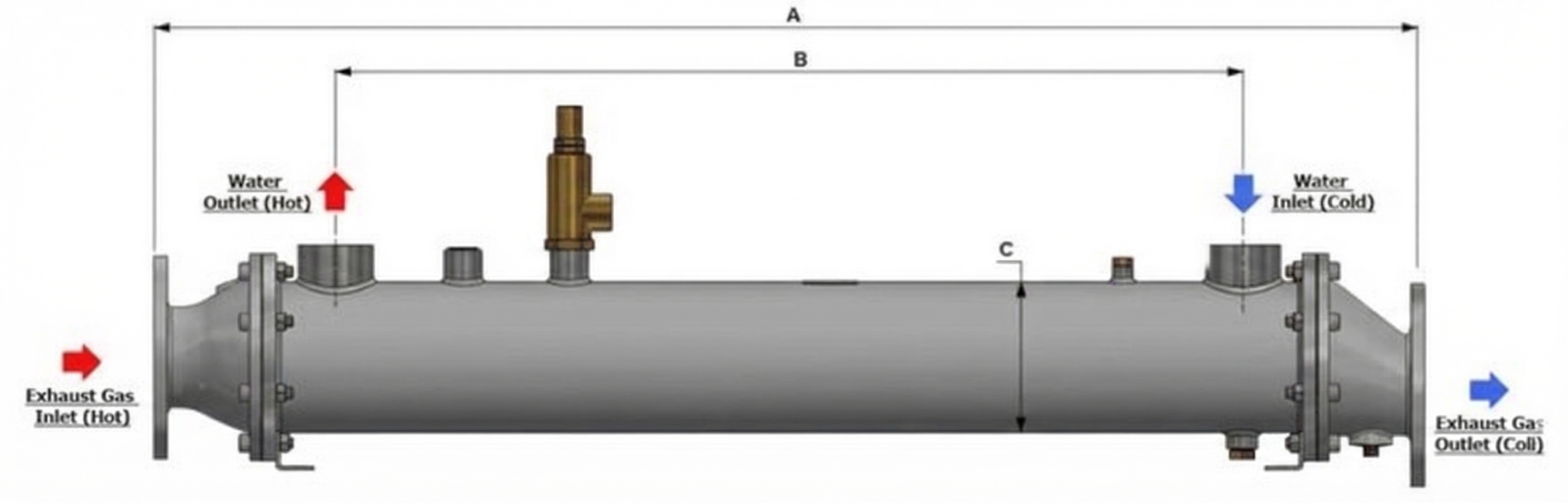

Bif 88-168

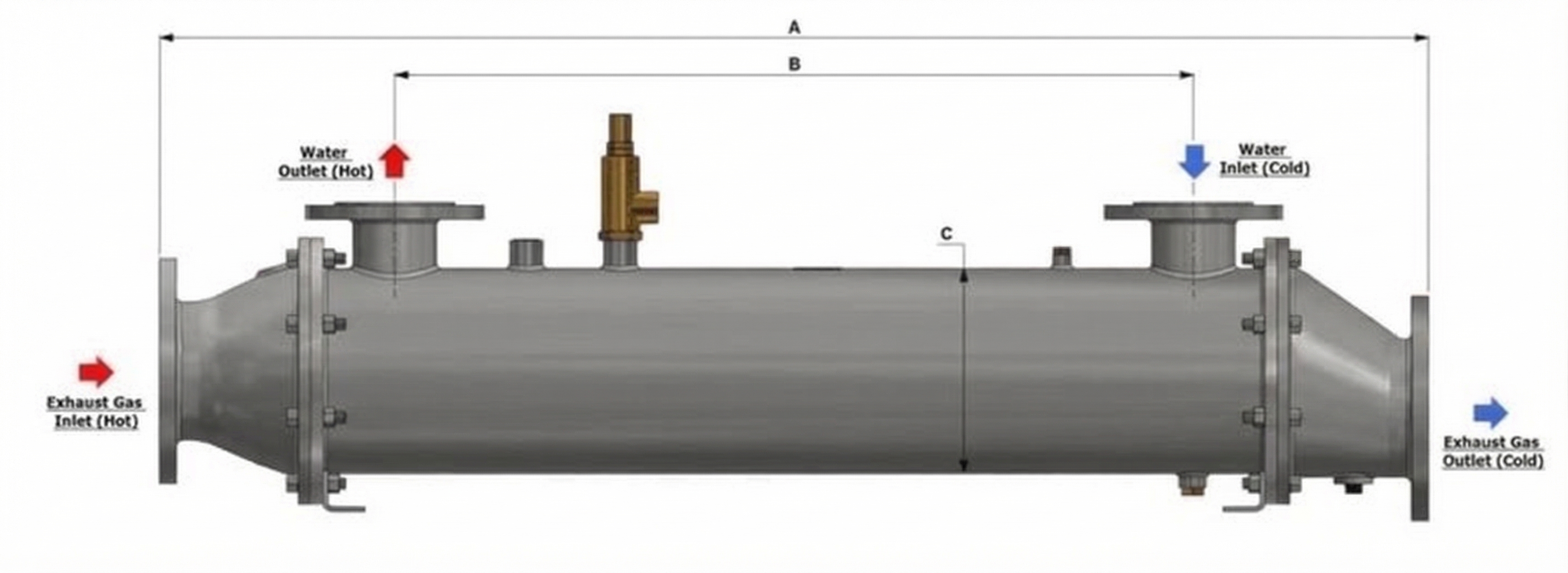

Bif 219-406
Technical Specifications
| Model | Typical Engine Power (kW) | Mass Flow (kg/min) | Pressure Drop (kPa) | Gas Outlet (°C) | Heat Recovery (kW) | Dim A (mm) | Dim B (mm) | Dim C (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| Bif 88 | 32 | 2.4 | 1.3 | 163 | 21 | 1162 | 920 | 88.9 | 20 |
| Bif 114 | 60 | 4.5 | 1.2 | 164 | 39 | 1192 | 900 | 114.3 | 29 |
| Bif 141 | 90 | 6.7 | 1.2 | 161 | 59 | 1232 | 890 | 141.3 | 39 |
| Bif 168 | 140 | 10.5 | 1.2 | 163 | 92 | 1282 | 870 | 168.3 | 55 |
| Bif 219 | 250 | 18.7 | 1.2 | 164 | 163 | 1352 | 850 | 219 | 98 |
| Bif 273 | 400 | 30 | 1.2 | 164 | 262 | 1432 | 810 | 273 | 146 |
| Bif 324 | 600 | 45 | 1.2 | 164 | 392 | 1532 | 740 | 324 | 208 |
| Bif 406 | 950 | 70 | 1.1 | 165 | 610 | 1670 | 740 | 406.4 | 319 |
* Custom sizes and configurations available upon request. Contact our technical team for specific requirements.
High thermal efficiency up to 85%
Compact footprint design
Corrosion-resistant materials
Low maintenance requirements
Customizable configurations
ISO certified quality
Design & Construction Features
Heat Transfer Technology
- Optimized fin tube design for maximum efficiency
- Counter-flow configuration
- Enhanced turbulence for better heat transfer
- Minimal fouling surface design
Construction Quality
- High-grade stainless steel construction
- TIG/MIG welded joints for reliability
- Corrosion-resistant coatings available
- Pressure tested to 1.5x design pressure
